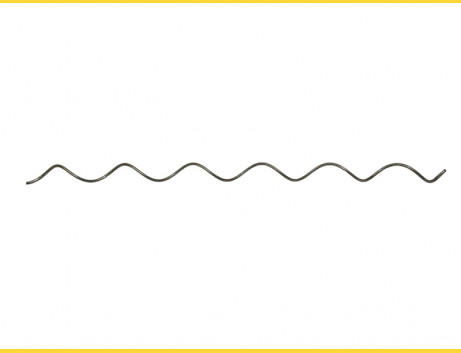

Connecting spiral 4,00mm x 160cm / ZN+AL
View larger
Welded gabions are supplied in a disassembled state as individual blocks, which are joined directly at the construction site with connecting spirals. Three lengths of spirals are used: 0.6 m, 1.1 m and 1.6 m, which are used to stitch the individual blocks and partitions together into a complete unit. However, it must be taken into account that individual spirals can be used to connect e.g. adjacent bottoms and a partition at the same time, i.e. several sides of individual blocks or partitions are connected with one spiral.
Data sheet
| Gabion - Length of connecting spiral | 160 cm |
| Gabion- wire diameter (mm) | 4,00 mm |
| Gabion - surface treatment | ZN+AL (95+5%) |
